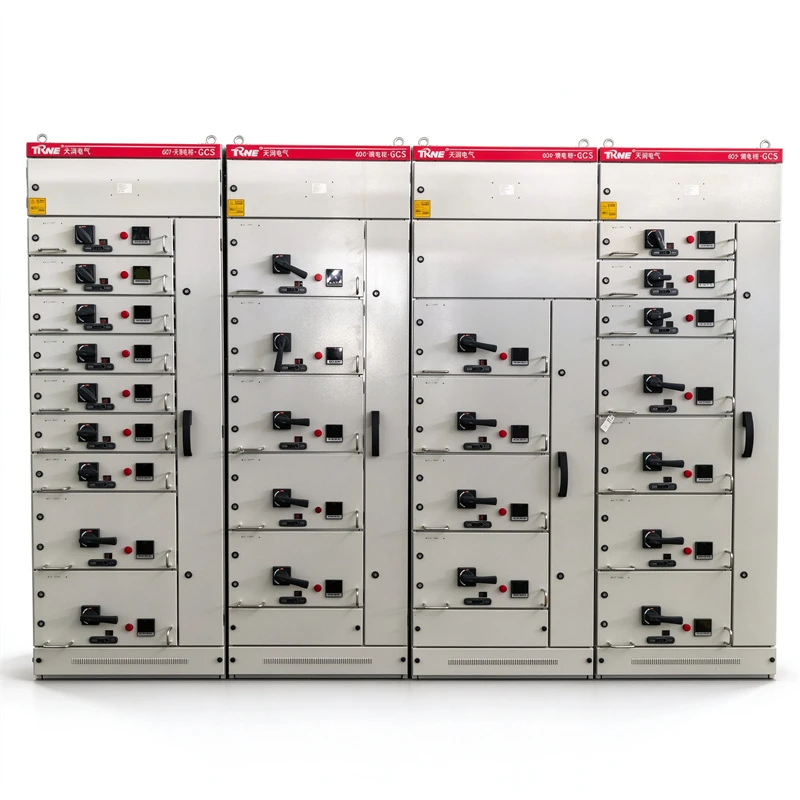

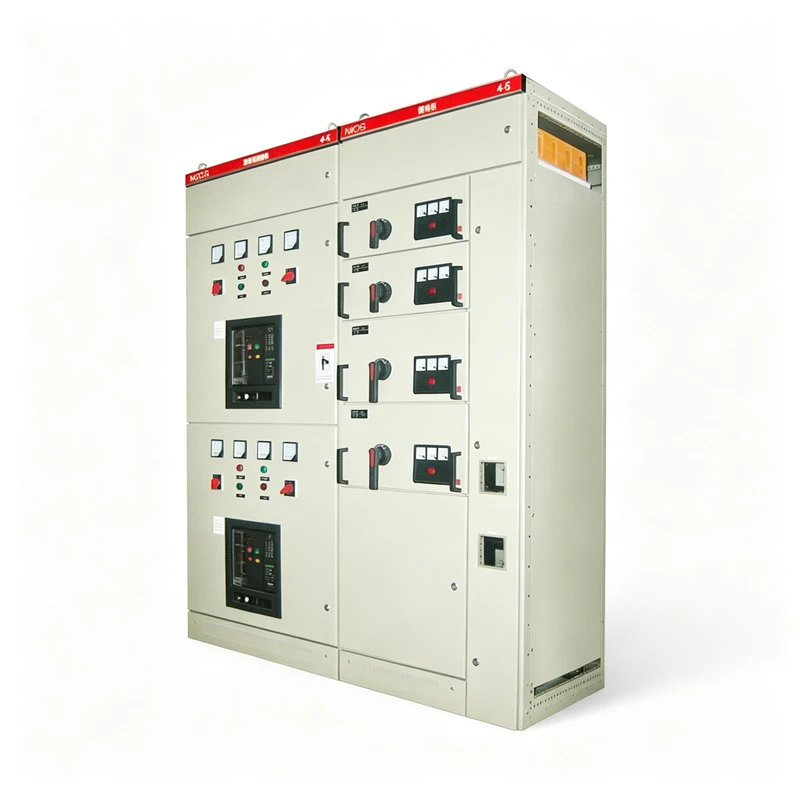

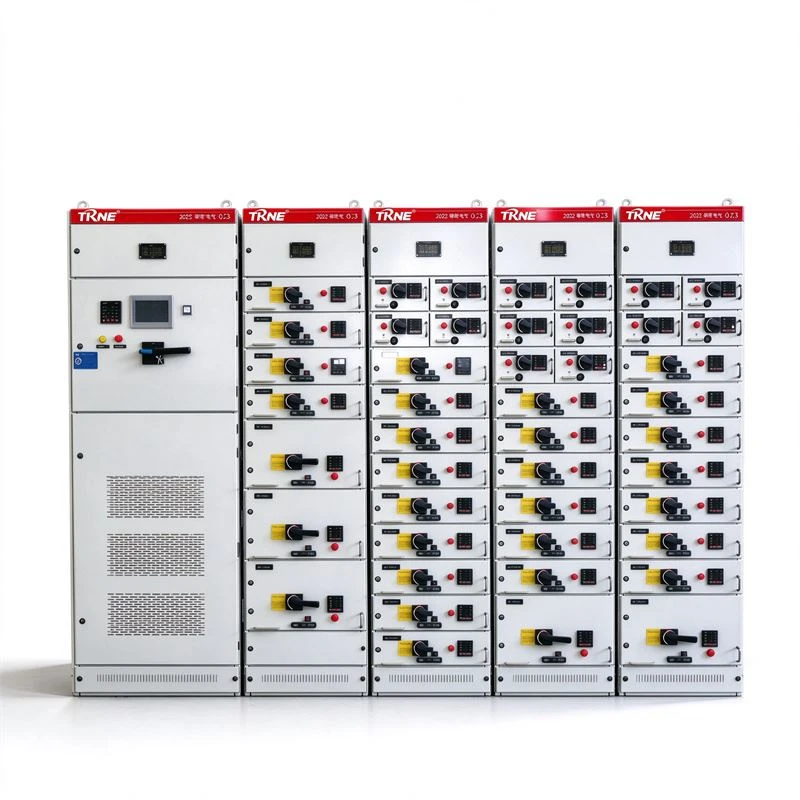

LV Withdrawable Switchboard
Zhejiang Tianrun Electric Co., Ltd. is one of the leading manufacturers and suppliers of lv withdrawable switchboard in China. We are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk advanced lv withdrawable switchboard from our factory. Also, quotation is available.

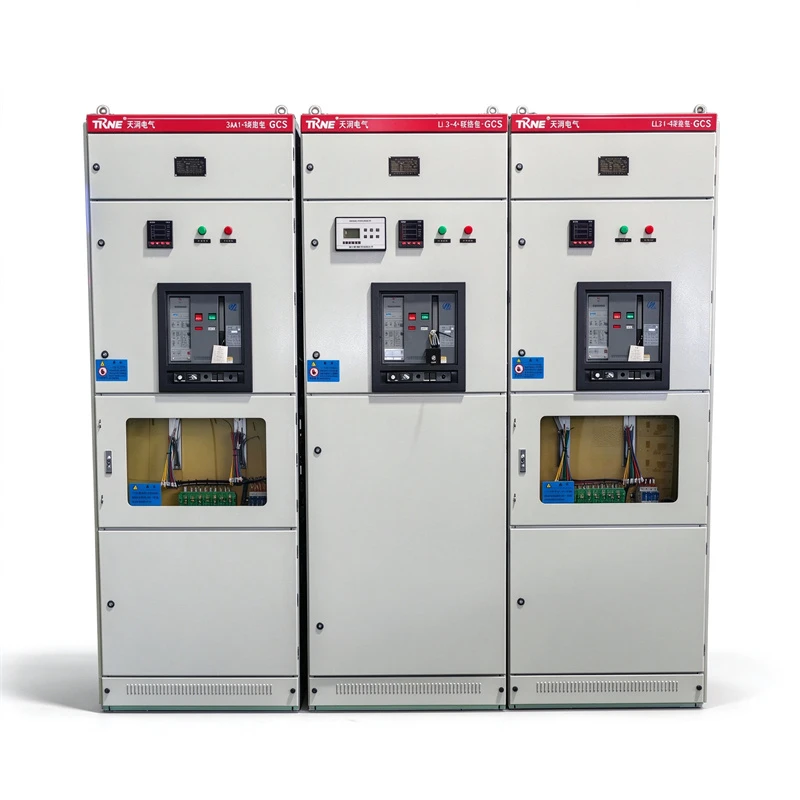

Product Overview
The GCS low-voltage switchgear distribution, jointly designed and developed by two cooperating parties, with technical performance meeting the development needs of the power market, is suitable for distribution systems in power plants, petrochemical, metallurgical, textile, high-rise buildings and other industries, for power distribution and control of electrical equipment.
Core Features
- Jointly developed to meet market needs: Designed and developed by two cooperating parties in accordance with the requirements of industry authorities, major power users and design institutes, in line with the development needs of the power market.
- Meets automation requirements: Ideal for large-scale power plants, petrochemical systems and other places with high automation requirements and computer interface needs.

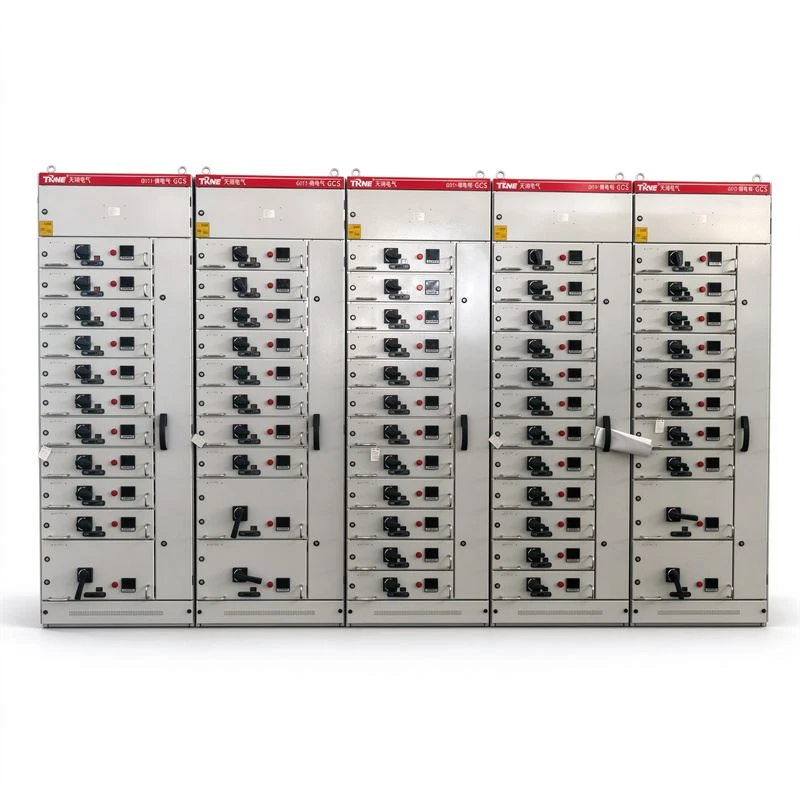

- Withdrawable structure for easy maintenance: Functional units can be drawn out and replaced with ease, minimizing downtime and improving equipment availability.
- Standardized modular design: Highly versatile and flexible assembly, facilitating expansion, upgrade and retrofit.
- Safe and reliable operation: Mechanical interlocking with position indication effectively prevents misoperation for safe use.
The Main Parameter
|
Rated Voltage of Main Circuit (V) |
AC380/400/660 |
|
|
Rated Voltage of Auxiliary Circuit (V) |
AC220/380/400 DC110/220 |
|
|
Rated Frequency (Hz) |
50/60 |
|
|
Rated Insulation Voltage (V) |
400(66a) |
|
|
Rated Current(A) |
Horizontal Busbar |
≤4000 |
|
Vertical Busbar (MCC) |
1000 |
|
|
Rated Short-Time Withstand Current of Busbar (kA/1s) |
5,080 |
|
|
Rated Peak Withstand Current of Busbar (kA/1s) |
105,176 |
|
|
Power Frequency Test Voltage of Busbar (V/1min) |
Main Circuit |
2500 |
|
Auxiliary Circuit |
1760 |
|
|
Three-Phase Four-Wire System |
A.B.C.PEN |
|
|
Busbar |
Three-Phase Five-Wire System |
A.B.C.PE.N |
|
Protection Level |
IP30.1P40 |
|
Note: The technical parameters of our transformers are for reference only. Customized solutions are available, with specifications adjustable according to project specific requirements.

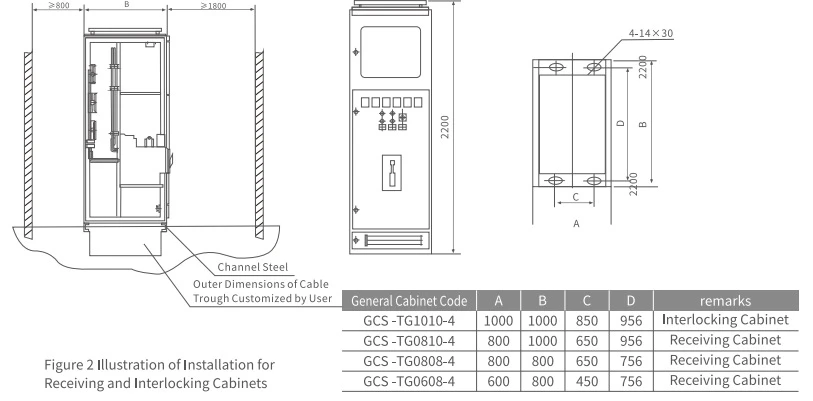

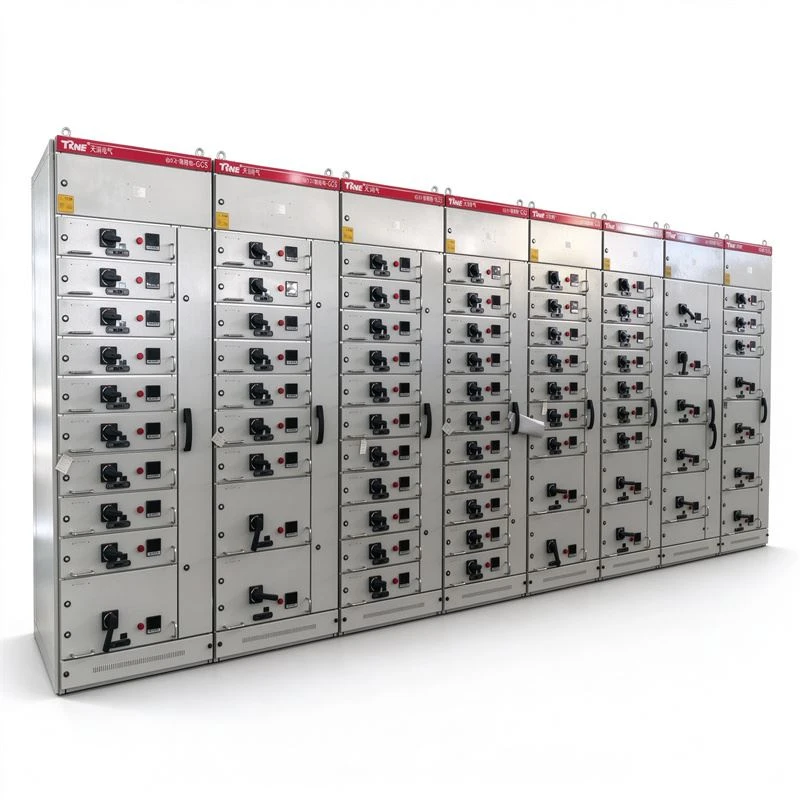

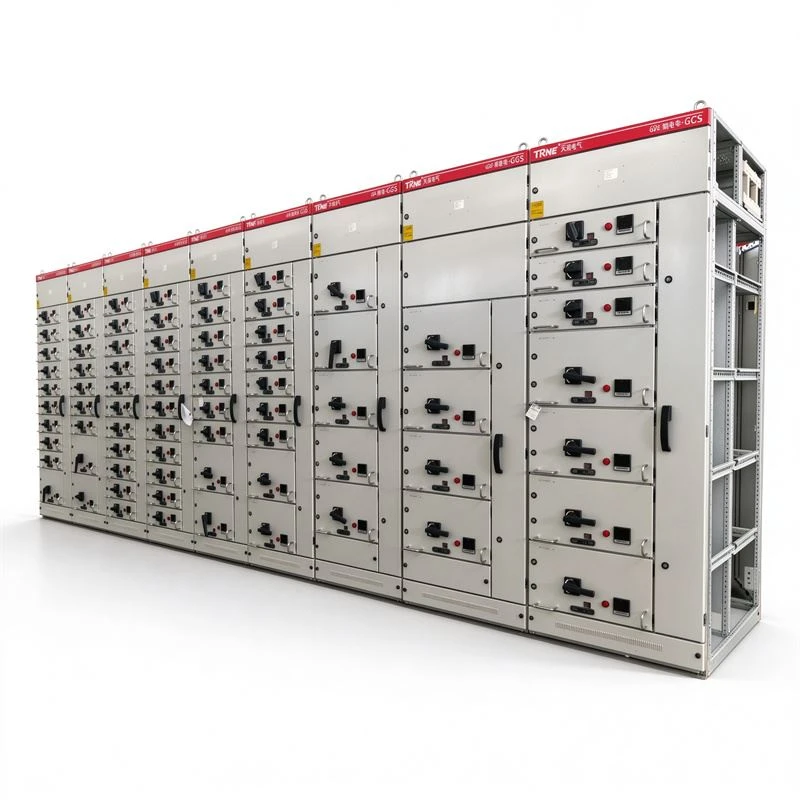

Structure Features
Environment
- Ambient temperature: Shall not exceed +40℃ or be lower than -5℃, with a 24-hour average not exceeding +35℃. If exceeded, the operation capacity shall be reduced according to the actual situation.
- Location and altitude: For indoor use, with the altitude of the installation site not exceeding 2000m.
- Relative humidity: Shall not exceed 50% at a maximum temperature of +40℃; higher relative humidity is allowed at lower temperatures (e.g., 90% at +20℃), with consideration that condensation may occur occasionally due to temperature changes.
- Installation conditions: The tilt with the vertical plane during installation shall not exceed 5%, and the mounting surface of the cabinet shall be relatively flat.
- Site requirements: The device shall be installed in a location without severe vibration and impact, and where electrical components are not susceptible to corrosion.
- Special requirements: Users with special requirements can negotiate with the manufacturer for a solution.
Application
Power Industry
Large-scale power plants, for auxiliary power systems and distribution control, meeting high automation and computer interface requirements.
01
Petrochemical Industry
Power distribution systems of petrochemical plants, ensuring reliable power supply for continuous production.
02
Metallurgical Industry
Power supply, distribution and control of electrical equipment in metallurgical enterprises.
03
Textile Industry
Power distribution systems of textile enterprises.
04
Construction Industry
Power distribution systems of high-rise buildings.
05
The Different among GCS, GCK, MNS
|
Dimension |
GCK |
GCS |
MNS |
|
Positioning |
Economy type |
Standard type, cost-effective |
High-end type |
|
Structural module |
Conventional structure, taller drawer units |
20mm module commonly used in China, standard drawer unit |
25mm module (C-profile), highly modularized |
|
Drawer options |
Standard drawers |
Minimum 1/2 drawer |
Minimum 1/4 drawer, higher circuit density |
|
Busbar system |
Horizontal busbar at cabinet top; vertical busbar without flame-retardant functional board |
Horizontal busbar at rear; vertical busbar mounted in flame-retardant plastic functional board |
Horizontal busbar rear-exit; vertical busbar in flame-retardant plastic functional board |
|
Interlocking |
Relatively simple |
Mainly relies on the switch's own interlocking |
Additional interlocking mechanism on drawers for enhanced protection |
★ How to choose? Choose GCK for general projects, GCS for balanced performance and cost, and MNS for critical loads and high reliability requirements.
FAQ
Q1: What is the GCS low-voltage Draw-out Type Switchgear?
A: The GCS low-voltage Draw-out Type Switchgear is a switchgear distribution assembly jointly designed and developed by two cooperating parties, with technical performance meeting the development needs of the power market.
Q2: Why is GCS suitable for places with high automation requirements?
A: GCS is applicable to places requiring computer interfaces, meeting the monitoring and automation control requirements of large-scale power plants, petrochemical systems and similar sites, and can be conveniently integrated into superior management systems.
Q3: What factors should be considered in selection?
A: Main considerations include power supply system parameters (voltage, current, frequency), site environmental conditions (temperature, humidity, altitude), number of circuits and load characteristics, as well as site layout. Special requirements can be negotiated with the manufacturer.
