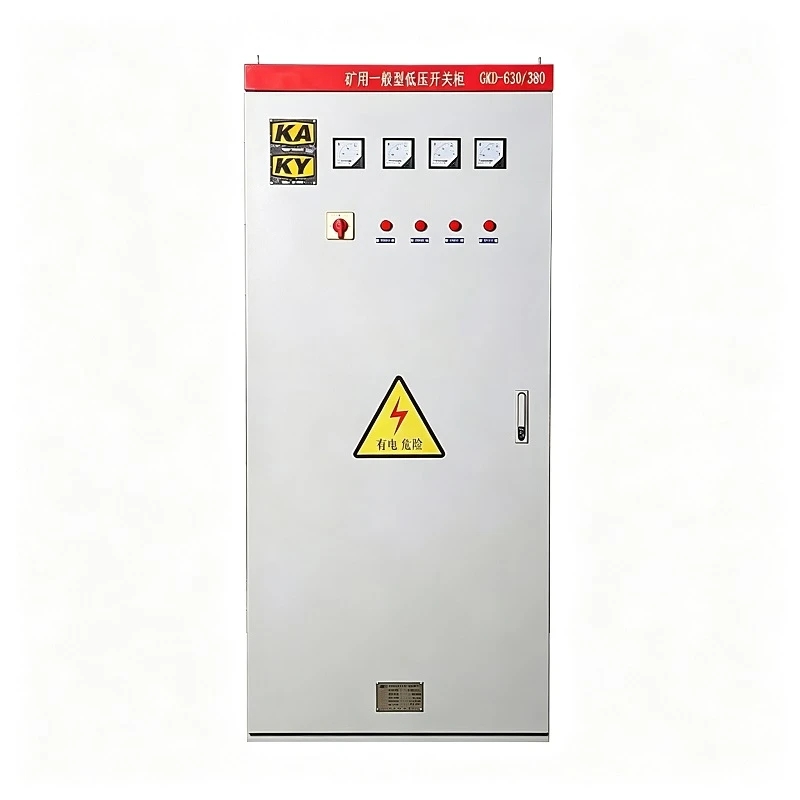

Low-Voltage Switchgear for Mining Use
Capping voltage: 690kV
Frequency: 50Hz
Rated current: 50A, 75A, 100A, 150A, 200A, 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A
Shell protection level: IP54, IP43, IP33, IP32, IP31
Main protective functions: Short circuit protection; Overload protection; Leakage protection; Over voltage and under voltage protection; Under-voltage release function.
Zhejiang Tianrun Electric Co., Ltd. is one of the leading manufacturers and suppliers of low-voltage switchgear for mining use in China. We are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk advanced low-voltage switchgear for mining use from our factory. Also, quotation is available.
Product Overview

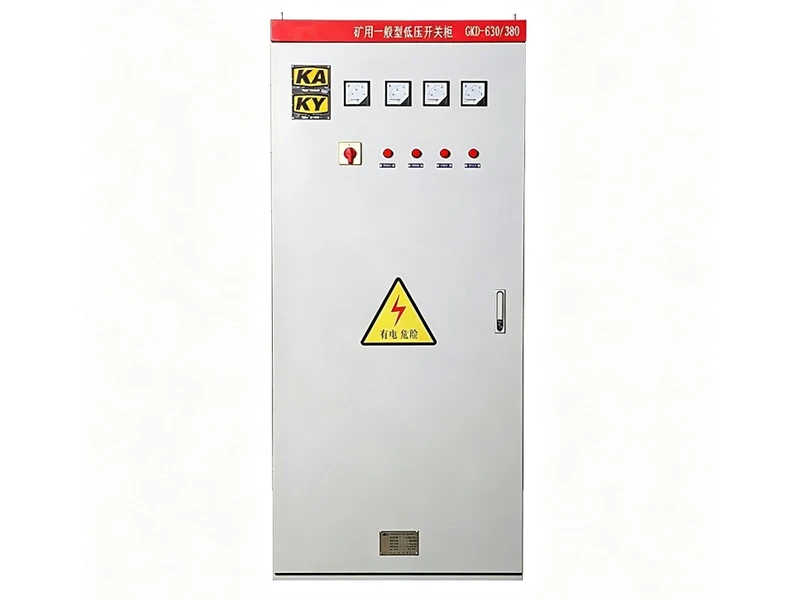

The GKD type mining low-voltage switchgear is a draw out type switchgear that has obtained the mining product certificate and safety mark certification. It is suitable for various mining areas, including coal mines, non-coal mines and other similar underground industrial production departments where there is no gas or coal dust explosion hazard. Suitable for AC50Hz power supply systems with rated operating voltage of 660V and 380V and rated operating current up to 3200A, it is used for energy conversion and distribution control of power, lighting and distribution equipment, enabling motor starting and lighting supply. It can also serve as a rectifier cabinet for traction locomotives and a DC power cabinet for underground substations. Equipped with a leakage protection unit, it is suitable for underground use.
Type Designation
Note: Mining safety mark (Safety mark number: 400A: KAD230068; 630A: KAD230067; 800A: KAD230063; 1000A: KAD230065; 1250A: KAD230066; 1600A: KAD230062; 2000A: KAD230069)
Mining general-purpose mark (Certificate number: KA2022W1281-1/2)
Product Features
- Suited to mining environments: Suitable for coal mines, non-coal mines and other similar underground industrial production departments where there is no gas or coal dust explosion hazard.
- Multi-purpose: Can also serve as a rectifier cabinet for traction locomotives and a DC power cabinet for underground substations, meeting various underground power supply needs.
- Complete mining certifications: Obtained the mining product certificate and safety mark certification, meeting mining product access requirements.
- Versatile functions: Used for energy conversion and distribution control of power, lighting and distribution equipment, enabling motor starting and lighting supply.
- Leakage protection: Equipped with a leakage protection unit, suitable for underground use and ensuring personal and equipment safety.
Operating Environmental Condition
- Ambient temperature: Not higher than +40℃, not lower than -5℃;
- Altitude: ≤2500m;
- The surrounding air relative humidity is not greater than 95% (at 25℃);
- In a place without rocking and impact vibration;
- Allowing for a small amount of vertical dripping;
- Places without fire, explosion, severe pollution, chemical corrosion, and severe vibration;
- Allow storage and transportation at -30℃.
Application
Underground Distribution
Power distribution and control in underground substations and distribution points of coal mines and non-coal mines.
01
Motor Control
Starting and protection of motors for underground production machinery, conveyors, fans, etc.
02
Lighting Supply
Power supply for underground lighting and other low-voltage equipment.
03
Traction Rectification
Used as a rectifier cabinet for traction locomotives, supplying DC power to underground transport systems.
04
DC Power Supply
Used as a DC power cabinet for underground substations, supplying DC power to operation and protection circuits.
05
FAQ
Q: What is the GKD switchgear?
A: The GKD is a mining low-voltage draw out type switchgear suitable for coal mine underground environments.
Q: When should the GKD be selected?
A: It is recommended when the distribution site is an underground environment (without gas or coal dust explosion hazard) in coal/non-coal mines and motor control, lighting supply or DC power is required.
Q: What is leakage protection?
A: A protection device that automatically cuts off the power when insulation failure causes leakage current exceeding the set value, preventing electric shock and electrical accidents.
