Product Overview

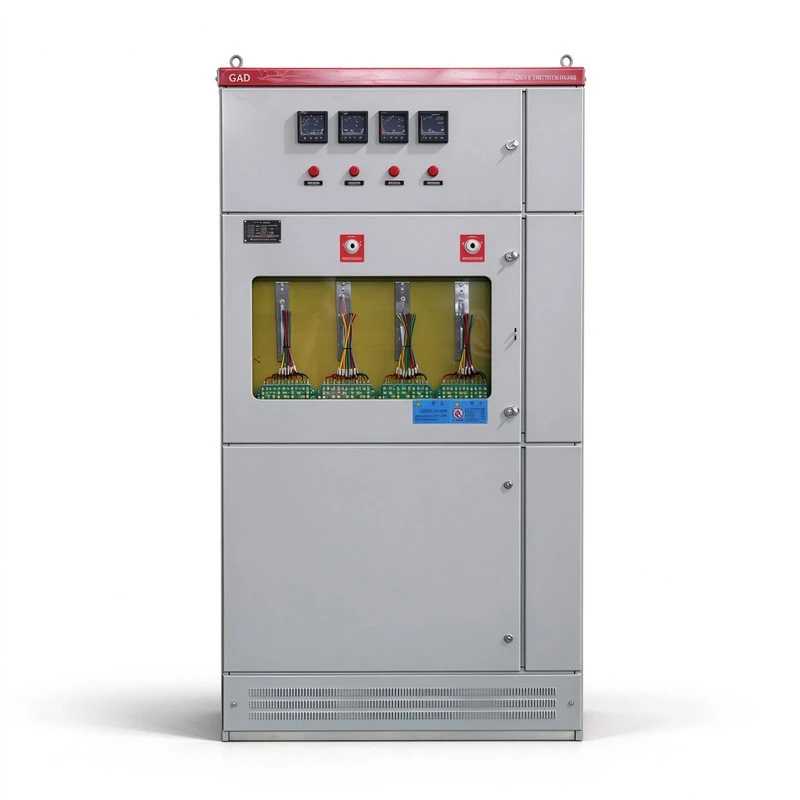

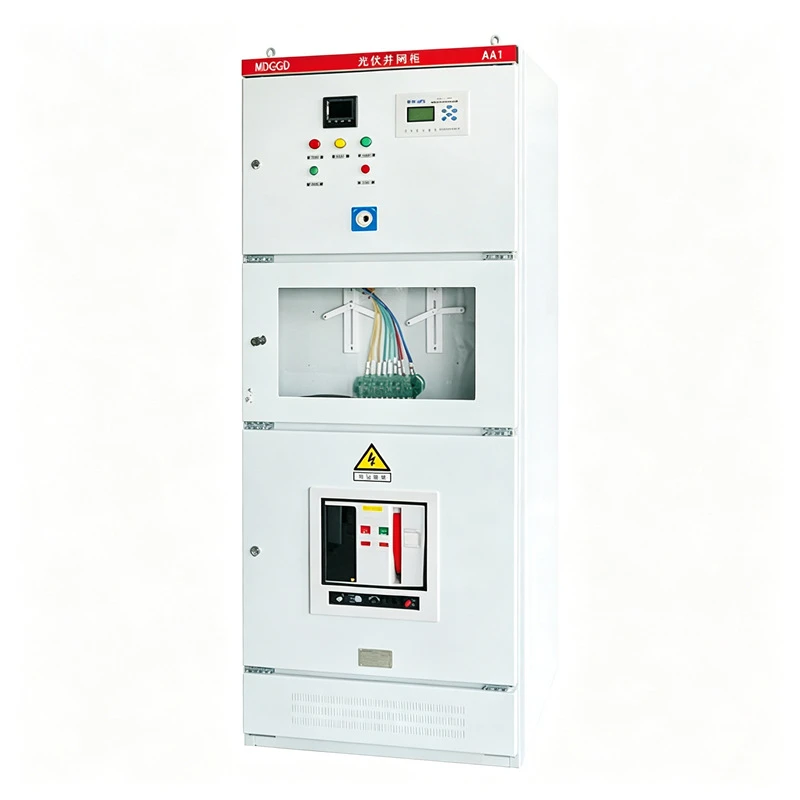

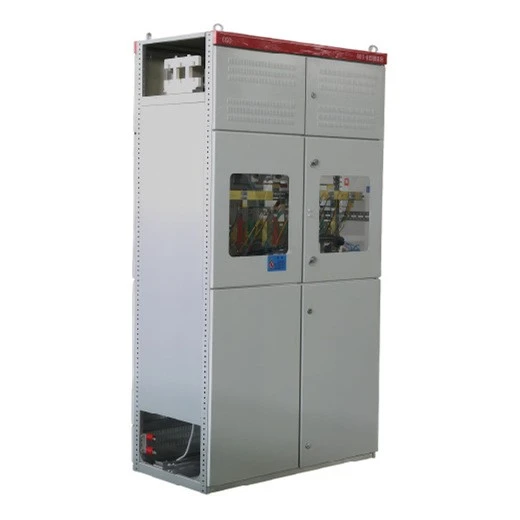

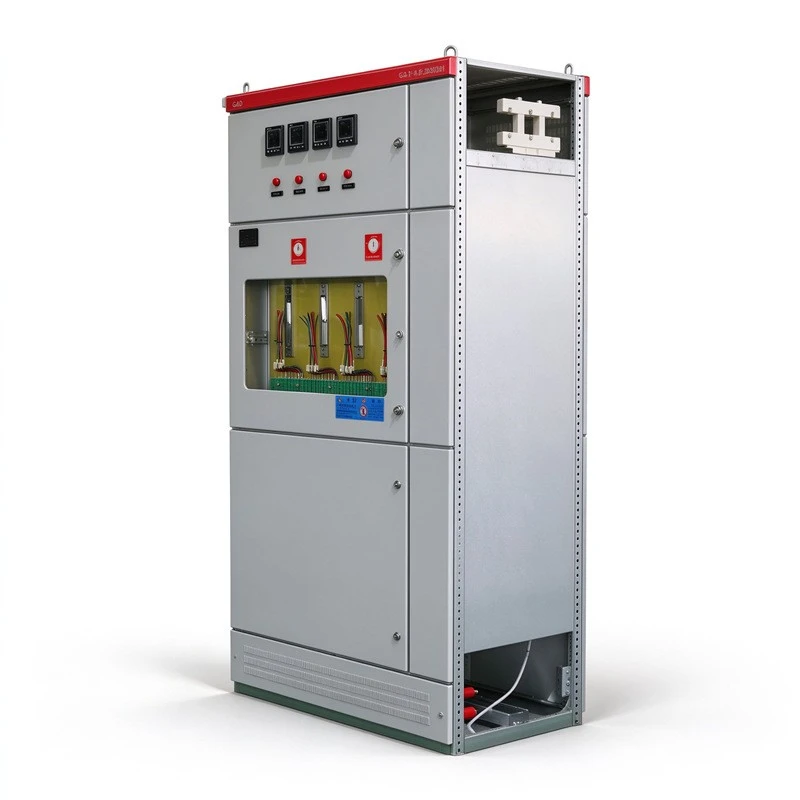

The GGD type PV grid-connected cabinet serves as the main export of the photovoltaic power station, connecting the PV station to the power grid as the boundary point between the PV generation system and the grid. It is a key component connecting the centralized inverter or AC combiner box with the step-up power grid transformer. The incoming line can be connected via a circuit breaker or directly, and the output via a circuit breaker or load isolation switch; busbars are connected with tin/silver plating, and secondary lightning protection is provided. With IP40 for indoor use and IP65 for outdoor use, additional functions such as metering, protection and remote control can be added upon customer requirements. The product features a simple, safe and aesthetically pleasing structure, facilitating on-site wiring and maintenance and ensuring long-term stable operation.
Type Designation
Core Features
- Clear grid-connection boundary: Serves as the main export of the PV power station, connecting the PV station to the power grid as the boundary point between the PV generation system and the grid.
- Flexible incoming/outgoing configurations: Incoming line via circuit breaker or direct connection; output via circuit breaker or load isolation switch, adaptable to various system schemes.
- Comprehensive lightning protection: Secondary lightning protection enhances the lightning withstand capability of the grid-connected system.
- Reliable busbar connection: Busbars connected with tin/silver plating for reliable contact and good conductivity.
- Adaptable protection levels: IP40 for indoor use and IP65 for outdoor use, suitable for different installation environments.
- Extensible functions: Metering, protection and remote control functions can be added upon customer requirements.
- Maintenance-friendly structure: Simple, safe and aesthetically pleasing structure facilitates on-site wiring and maintenance, ensuring long-term stable operation.
Main Technical Parameter
|
Project Name |
Unit |
Technical Parameters |
|
|
Rated Operating Voltage |
V |
AC400/690/800 |
|
|
Auxiliary Circuit Rated Voltage |
V |
AC220/380/400/DC110/220 |
|
|
Rated Current |
A |
4000/3200/3150/2500/2000/1600 |
|
|
Grid-Connected Power |
kW |
50/100/150/200/250/300/400/500/600/800/1000 |
|
|
Rated Power |
Hz |
50/60 |
|
|
Rated Insulation Voltage |
V |
1000 |
|
|
Busbar Rated Short-Time Withstand Current |
kA/1s |
70 |
|
|
Power Frequency Test Voltage |
Main Circuit |
V/1min |
2500 |
|
Auxiliary Circuit |
1760 |
||
|
AC Lightning and Surge Protection |
Available, In: 20kA; lamx: 40kA; Up: ≤4kV |
||
|
Protection Level |
IP65, IP54, IP43, IP41, IP31, IP30 (Optional) |
||
Note: The technical parameters of our transformers are for reference only. Customized solutions are available, with specifications adjustable according to project‑specific requirements.
Structure Features
Operating Environment
- Ambient temperature: Shall not exceed +40℃ or fall below -20℃, with an average temperature within 24 hours not exceeding +35℃. If these limits are exceeded, the operating capacity shall be adjusted according to the actual situation.
- Relative humidity: The air shall be clean, with relative humidity not exceeding 70% at the highest temperature of +40℃. Higher relative humidity is allowed at lower temperatures, with occasional moderate condensation to be considered due to temperature fluctuations.
- Altitude: Shall not exceed 3000m.
- Transport and storage: Suitable within a temperature range of -25℃ to +55℃, with short-term exposure (not exceeding 24 hours) up to +70℃. Irreversible damage shall be avoided at these extreme temperatures, and the device shall function normally under normal conditions.
- Installation conditions: The vertical installation slope shall not exceed 5°.
- Environmental media: No explosive hazardous substances, and the medium shall not contain gases and dust that can corrode metals or damage insulation.
- Note: If the above operating conditions cannot be met, the user and the manufacturer should negotiate to resolve the issue.
Application
Large-scale ground centralized PV power stations
Connecting centralized inverters with the step-up power grid transformer, serving as the station's grid-connection outlet and the boundary point with the grid.
Ground string PV systems
Connecting AC combiner boxes with the step-up transformer for centralized grid connection of string systems.
Ground distributed PV systems
Serving as the grid-connected distribution device for distributed stations, connecting into the grid distribution system.
FAQ
Q: What is the grid-connected PV system?
A: A solar power generation system that connects the PV generation system to the public grid via grid-connected equipment such as inverters, delivering the generated power directly into the grid, with metering and protection devices for grid-connected power supply.
Q: What is a grid-connected inverter?
A: A power electronic device that converts the DC power generated by PV modules into AC power matching the grid's frequency, phase and voltage, enabling direct delivery into the grid; it is the core equipment of a grid-connected PV system.
Q: What is the main function of the GGD type PV grid-connected cabinet?
A: It serves as the main export of the PV power station, connecting the PV station to the power grid as the boundary point between the PV generation system and the grid, for grid-connected power delivery and system protection.
