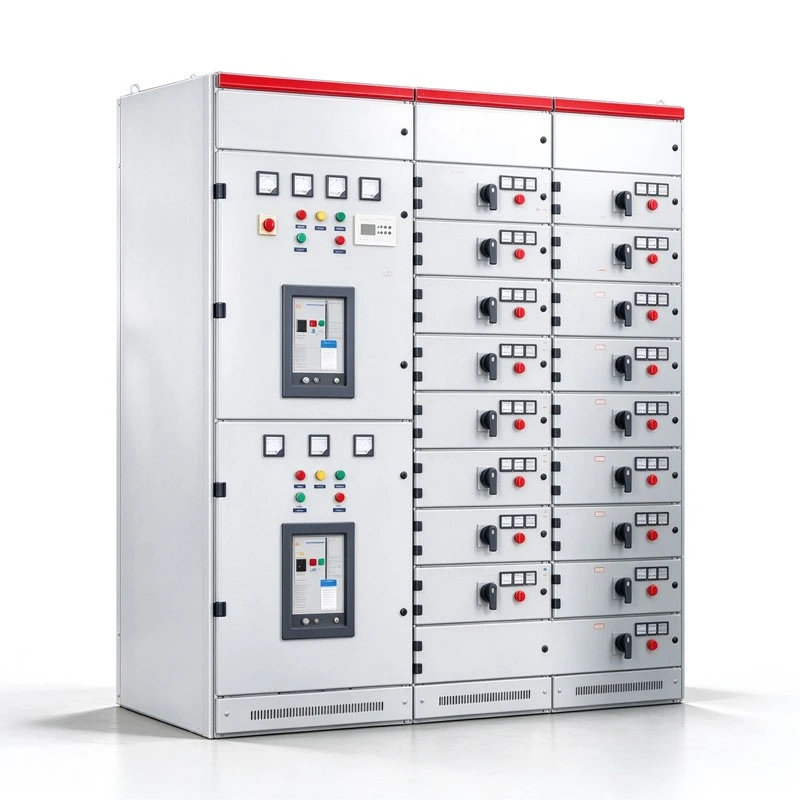

Low Voltage Fixed-Segregated Cabinet
Zhejiang Tianrun Electric Co., Ltd. is one of the leading manufacturers and suppliers of low voltage fixed-segregated cabinet in China. We are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk advanced low voltage fixed-segregated cabinet from our factory. Also, quotation is available.
Product Overview

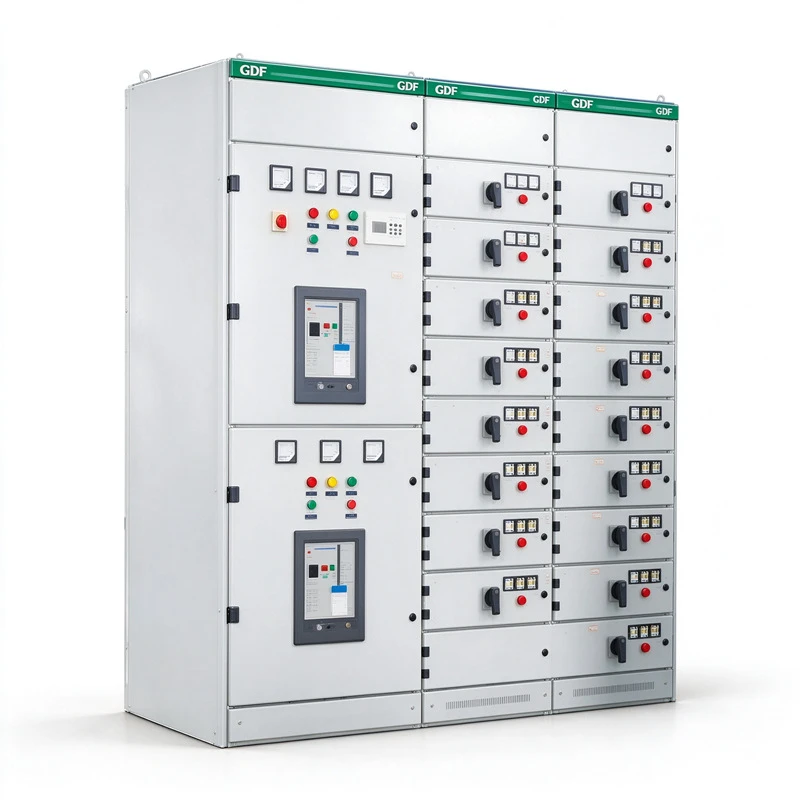

The GDF type AC low-voltage fixed-partition switchgear is a modular low voltage switchgear, developed in accordance with market requirements (State Grid Corporation of China), drawing on the advantages of domestic and overseas low-voltage switchgear such as MNS and GCS. It adopts withdrawable or plug-in air circuit breakers, featuring safe and reliable performance and convenient maintenance. The series adopts an independent modular structure, consisting of a horizontal busbar compartment, a vertical busbar compartment, functional unit compartments and cable compartments, which are separated and sealed with steel plates or insulating plates to effectively prevent faults from affecting each other. It is suitable for AC power distribution systems in power plants, substations and various industrial and mining enterprises.
Core Features
Mature Technology Absorbed
Developed according to market requirements, with proven and reliable performance.
01
Flexible Operation
Adopts withdrawable or plug-in air circuit breakers, offering convenient operation, inspection and maintenance.
02
Safe and Reliable
Designed for safe, reliable and convenient maintenance, suited to distribution applications requiring continuous power supply.
03
Independent Modular Structure
Composed of a horizontal busbar compartment, a vertical busbar compartment, functional unit compartments and cable compartments, with a clear layout.
04
Separated and Sealed Compartments
Compartments are divided and sealed with steel plates or insulating plates, effectively preventing faults from interfering with one another and limiting their impact.
05
Type Designation
Main Technical Parameter
|
Item |
Unit |
Parameter |
|
|
Rated voltage of main circuit |
V |
AC380 (400), (660) |
|
|
Rated voltage of auxiliary circuit |
V |
AC220, 380 (400) |
|
|
Frequency |
HZ |
50 (60) |
|
|
Rated insulation voltage |
V |
660 |
|
|
Rated current |
Horizontal busbar |
A |
≤4000 |
|
Vertical busbar (MCC) |
1600 (2000) |
||
|
Rated short-time withstand current of busbar |
KA/1s |
70 |
|
|
Rated peak withstand current of busbar |
KA/0.1s |
174 |
|
|
Power-frequency test voltage |
Main circuit |
V/1min |
2500 |
|
Auxiliary circuit |
1760 |
||
|
Busbar system |
Three-phase four-wire |
A.B.C.PEN |
|
|
Three-phase five-wire |
A.B.C.N.PE |
||
|
Degree of protection |
IP30.IP41 |
||
Structure Features
Operating Environment
- Ambient air temperature: Shall not exceed +40℃ or be lower than -20℃, with an average temperature within 24 hours not exceeding +35℃. If these limits are exceeded, derated operation shall be applied according to the actual situation.
- Atmospheric conditions: The air shall be clean. Relative humidity shall not exceed 70% at the maximum temperature of +40℃; higher relative humidity is allowed at lower temperatures (e.g., 95% at +25℃), with occasional moderate condensation to be considered due to temperature changes.
- Altitude: Shall not exceed 2000m.
- Transport and storage: Suitable within a temperature range of -25℃ to +55℃, with short-term exposure (not exceeding 24 hours) up to +70℃. Irreversible damage shall be avoided at these extreme temperatures, and the equipment shall operate normally under normal conditions.
- Installation conditions: The vertical installation tilt shall not exceed 5°.
- Environmental media: No explosive hazardous media, and the medium shall contain no gases or dust that can corrode metals or damage insulation, with no exposure to rain or snow.
- Note: If the above operating conditions cannot be met, the issue shall be resolved through negotiation between the user and the manufacturer.
Application
Power plants
Used in auxiliary power systems of power plants for control and protection of power, lighting and distribution equipment.
Substations
Used for station power and low-voltage distribution circuits in substations, ensuring reliable power supply to station equipment.
Industrial and mining enterprises
Used in low-voltage distribution systems of production workshops and public facilities.
Other AC distribution sites
Suitable for any low-voltage AC distribution application requiring safe, reliable and convenient maintenance.
FAQ
Q: What does "low voltage" mean?
A: In electrical power distribution, "low voltage" generally refers to AC systems up to 1000V; the switchgear in question is used in 380V/400V and 660V low-voltage distribution systems.
Q: What is the main purpose of switchgear?
A: To make, break and control electrical circuits, distribute electrical energy and protect lines and equipment, ensuring safe and reliable power supply.
Q: Does a switchgear have only one breaker?
A: No. One switchgear cabinet usually contains multiple circuits, each with its own circuit breaker or switching device, independently controlling and protecting different outgoing feeders; the exact number and ratings depend on the distribution scheme.
